SonicWall SSLVPN – Enhanced (SMA)

A VPN allows you to access resources on your office network from wherever you are. SonicWall NetExtender is a piece of software that can be installed on your laptop or desktop that initiates the VPN connection.

iStock-1061650946-2048x1279-1

Install the Microsoft Authenticator App

SonicWall NetExtender is configured to use MFA (Multi Factor Authentication). In order to initiate the connection you will need an Authenticator App. If you have Microsoft Authenticator installed on your mobile you can skip this step and move onto Generate a QR Code.

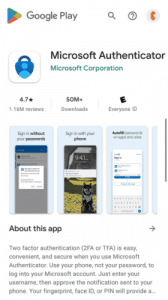

If you do not have Microsoft Authenticator installed, open up your App store search for Microsoft Authenticator. Download and install this app.

CNC2023-authenticator-1-1-168x300
CNC2023-authenticator-2-1-168x300

Generate a QR Code

Login to the web portal of your VPN Connection.

The link has been provided to you in the email with this guide.

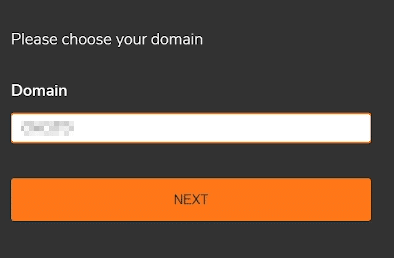

Here you will be asked to enter a domain. The domain has been provided to you in the email with this guide

smagenerateqr1

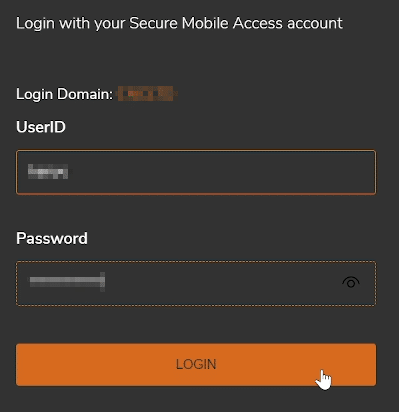

You will then be asked to enter a UserID and Password. This is the same as the one you use to log in to your work machine.

smagenerateqr2

Link the App to the QR Code

Open up the Microsoft Authenticator app on your phone and click the + (add) button in the top right corner of the app.

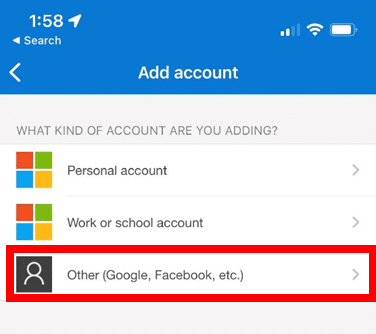

Select the Other button

MSAuthenticatorOther

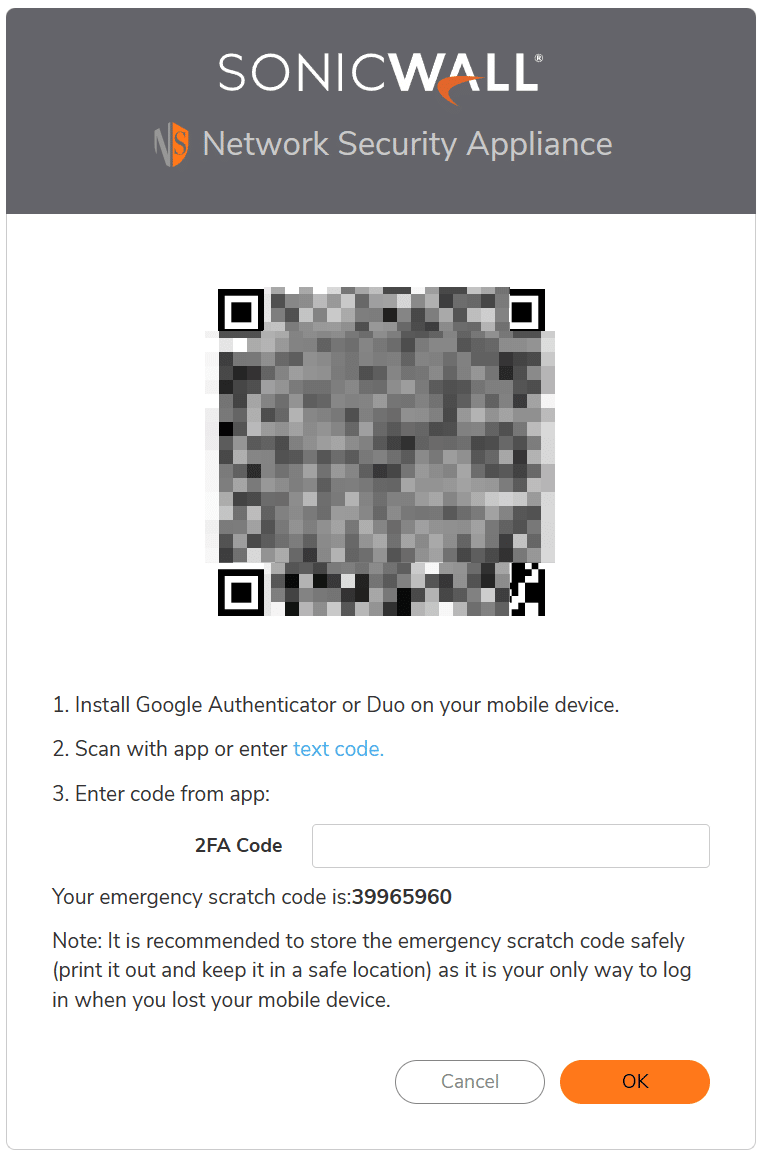

Now scan the QR code from the previous step.

QRCode-1

You should now see SNWL on the list in the Microsoft Authenticator app and see a 6 digit code.

SNWLMFA

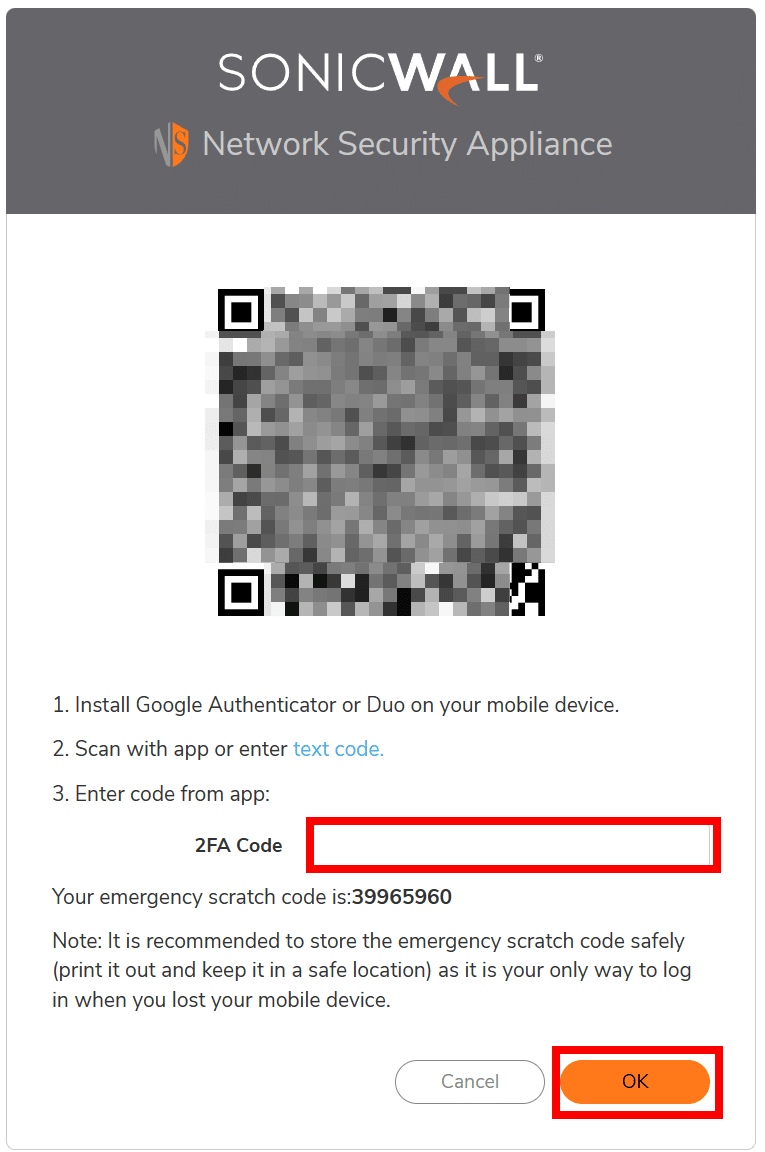

You will now need to enter the code from the Authenticator App into the 2FA Code box on your PC then press OK to complete the setup.

QRCode2FA

Multifactor Authentication has now been setup for the SonicWall NetExtender.

Configure SonicWall NetExtender

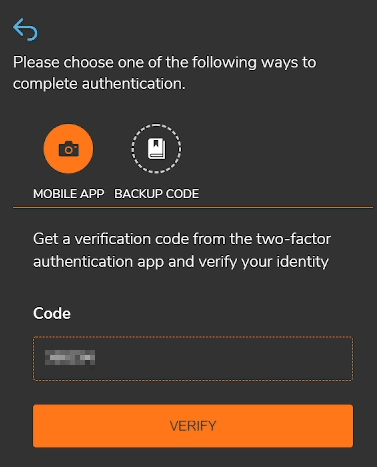

Once you have configured MFA, you should be back on the login screen. Log back in, and enter the code displayed in the Microsoft Authenticator app.


smaconfigurenetextender1

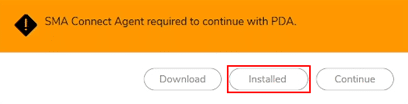

Once logged in, you should see a screen advising that the SMA Connect software is required to be installed. Click Installed, and this will automatically launch for you.

smaconfigurenetextender4

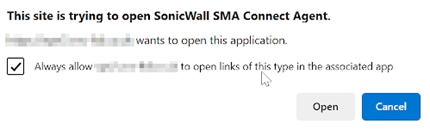

You will then see the following popup, click the tick box, and then click Open.

smaconfigurenetextender5

You will then see a few messages whilst the SMA Connect software checks over your machine to ensure it meets your company policies.

smaconfigurenetextender6

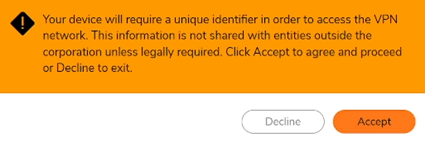

After a few minutes, you will see the below popup, click Accept.

smaconfigurenetextender7

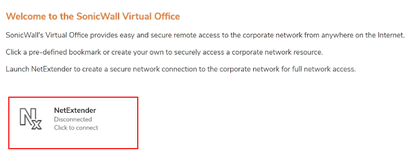

After a few minutes you will be logged into the website now, and you should see the below screen, click Click to connect.

smaconfigurenetextender8

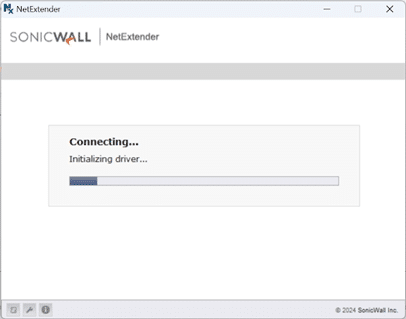

You should then see NetExtender start to configure itself for this new VPN.

smaconfigurenetextender9

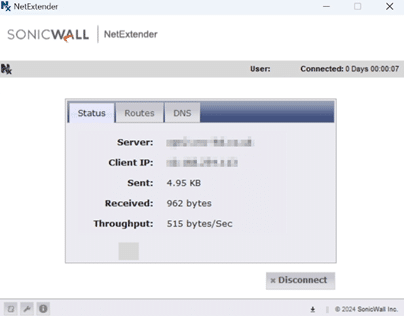

Once connected, NetExtender should look like the below.

smaconfigurenetextender10

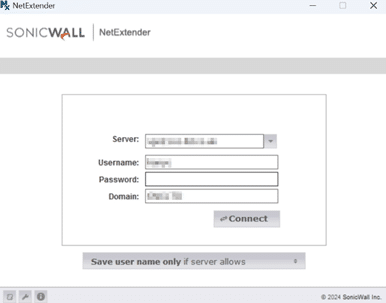

The next time you go to use NetExtender, simply launch the software, and your details should be saved, you’ll just need to enter your password.

smaconfigurenetextender11

Having issues?

If you’re having problems, or if you’ve lost your phone and can no longer login to your SSLVPN, please contact the FluidOne Brighton service desk for further assistance:

Call 01273 386333

Email: brightonsupport@fluidone.com

In conclusion

By utilising a VPN with two-factor authentication you can connect securely to your office and access shared resources.
